Product Overview

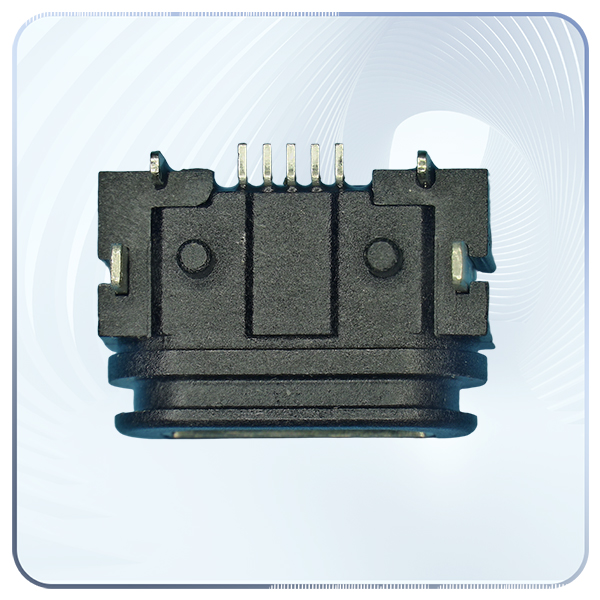

U-E-M7SS-Y-1 is a USB 3.0 high-speed connector featuring a SUS304 stainless steel shell, C2680 copper alloy terminals, and a UL94V-0 fire-rated high-temperature plastic housing. With corrosion resistance, high stability, and efficient data transmission, it suits consumer electronics, industrial equipment, and storage devices, providing reliable high-speed connectivity solutions.

Key Features

• Premium Material Construction
  • Shell: SUS304 stainless steel (0.25mm thickness, nickel-plated) for corrosion and wear resistance in harsh environments.
  • Terminals: C2680 copper alloy (0.3mm thickness) for excellent conductivity and low signal loss.
  • Housing: UL94V-0 fire-rated high-temperature plastic (black) with strong heat resistance and international safety compliance.
• Precision Dimensions
  • Dimensions: 7.15±0.281mm (L) × 2.50±0.102mm (W) × 1.30±0.051mm (H) for compact-space installation.
  • Pin pitch: 2.00±0.079mm for high-precision soldering and automated assembly.
• High-Speed Data Transfer
  • Compatible with USB 3.0 protocol, supporting up to 5Gbps transfer rate for HD video and large file quick transmission.
• Safety and Reliability
  • Fire rating: UL94V-0, effectively inhibiting flame spread to enhance equipment safety.
  • Low contact impedance and anti-oxidation plating ensure long-term stable connections.
• Wide Application Compatibility
  • Suitable for computers, external hard drives, and docking stations, meeting diverse connectivity needs.

Technical Specifications

Typical Applications

• Consumer Electronics: Ideal for USB port expansion in laptops and desktops, supporting peripherals like keyboards, mice, and printers with stable and fast data transfer.
• Data Storage: Compatible with external hard drives and USB flash drives, enabling high-speed reading/writing of large files for improved productivity.
• Industrial Equipment: The corrosion-resistant stainless steel shell makes it suitable for signal connections in industrial control devices and automated production lines.

Why Choose U-E-M7SS-Y-1？

• Durable Materials: Stainless steel shell and copper alloy terminals offer impact and oxidation resistance, ensuring longer lifespan than standard plastic connectors.
• Safety Compliance: Housing meets UL94V-0 fire rating, adhering to international safety standards for fire-sensitive applications.
• High Efficiency: USB 3.0 support delivers 10x faster speeds than USB 2.0, ideal for HD content and large file transfers.
• Precision Manufacturing: Tight dimensional tolerances (e.g., ±0.051mm) ensure precise matching with device interfaces, reducing connection issues.
• Cost-Effective: Balances high performance and economy, suitable for mass procurement in consumer and industrial applications.
