SS-5GL111-F
- Manufacturer
- OMRON
- Product Number
- SS-5GL
- Description
- The SS-5GL111-F is a high-reliability subminiature basic switch by OMRON, featuring a long hinge lever actuator and SPDT (Single Pole Double Throw) contact form, ideal for space-constrained applications requiring high stability.
- Inventory
- 22110
- Datasheet
-
SS-5GL111-F.pdf
- Delivery
-
- Payment
-
-
Product Overview
The SS-5GL111-F is a high-reliability subminiature basic switch by OMRON, featuring a long hinge lever actuator and SPDT (Single Pole Double Throw) contact form, ideal for space-constrained applications requiring high stability. With 30,000,000 mechanical operations and RoHS compliance, it suits consumer electronics, industrial automation, and automotive systems.
Key Features
- Compact & Durable Design: Measuring 19.8mm×9.5mm×14.5mm with a stainless-steel lever, it offers 30,000,000 mechanical cycles and ≥50,000 electrical cycles (30 cycles/min).
- Precise Operation: 0.39N (40gf) operating force with 1.2mm travel ensures tactile feedback and reliable ON/OFF switching.
- Wide Electrical Range: Rated for 250VAC 5A / 125VAC 5A, with ≤50mΩ contact resistance, ≥100MΩ insulation resistance, and 600VAC dielectric strength (1 min).
- Harsh Environment Ready: Operates at -25℃~+85℃, resisting vibration (10-55Hz, 1.5mm) and shock (100G) for industrial use.
- Safety & Compliance: RoHS compliant, UL/CSA/VDE approved, and flame-retardant housing (UL94V-0).
Technical Specifications
Item Parameters Model Number SS-5GL111-F Actuator Type Long hinge lever Contact Form SPDT Rating 250VAC 5A / 125VAC 5A (Resistive load) Contact Resistance ≤50mΩ (initial) Insulation Resistance ≥100MΩ (500V DC test) Dielectric Strength 600VAC (between terminals, 1 min) Operating Force 0.39N (40gf) Travel 1.2mm Operating Temperature -25℃~+85℃ Protection Class IP40 Terminals Solder terminals Typical Applications
- Consumer Electronics: Mode switches for smart home devices (e.g., smart plugs, thermostats), saving space with long-life reliability.
- Industrial Control: Start/stop controls for small machinery, enduring workshop vibrations and temperature fluctuations.
- Automotive Electronics: Window and mirror adjustment switches in vehicles, meeting automotive reliability standards across -25℃~+85℃.
- Medical Instruments: Gear selection or power switches for precision devices, with RoHS-compliant materials and dust-resistant design.
Why Choose SS-5GL111-F？
- Extreme Longevity: 30 million mechanical cycles reduce maintenance needs for high-frequency applications.
- Stable Performance: Low contact resistance and high insulation ensure accurate signal transmission and low power loss.
- Flexible Installation: Solder terminals support manual and automated soldering for dense PCBs.
- Global Compliance: UL/CSA/VDE approvals and RoHS compliance simplify market entry in EU, NA, and APAC.
- Technical Support: OMRON provides customization and technical guidance for optimal device integration.
SUNTOP COMPANY INTRODUCTION
Founded in 2000, Suntop is one of the leading global distributors of electronic
components, dedica ted to providing comprehensive procurement and supply chain services to the global electronics manufacturing industry. Our services include distribution, spot trading, PPV cost-saving projects, and inventory management. We not only offer high-quality products but also strive to assist our clients in achieving optimal solutions with minimal time and cost.
As a trusted partner for numerous OEMs, ODMs, CEMs, and EMS companies worldwide, our professional team manages millions of component records from thousands of trading partners across dozens of countries daily through our company database. We maintain close business relationships with major factories and distributors in North America, Europe, and Asia to ensure that our clients stay ahead in a highly competitive market. -
-
+ —1. What is the operating force of SS-5GL111-F? >
- The operating force is 0.39N (40gf), designed for tactile precision.
-
+ —2. What is the electrical life? >
- Electrical life is ≥50,000 cycles (30 cycles/min with load).
-
+ —3. Can it operate in high-temperature environments? >
- Yes, it functions at -25℃~+85℃, suitable for industrial thermal conditions.
-
+ —4. What are the soldering temperature limits? >
- Manual soldering ≤350℃ for ≤5 seconds to avoid internal damage.
-
-

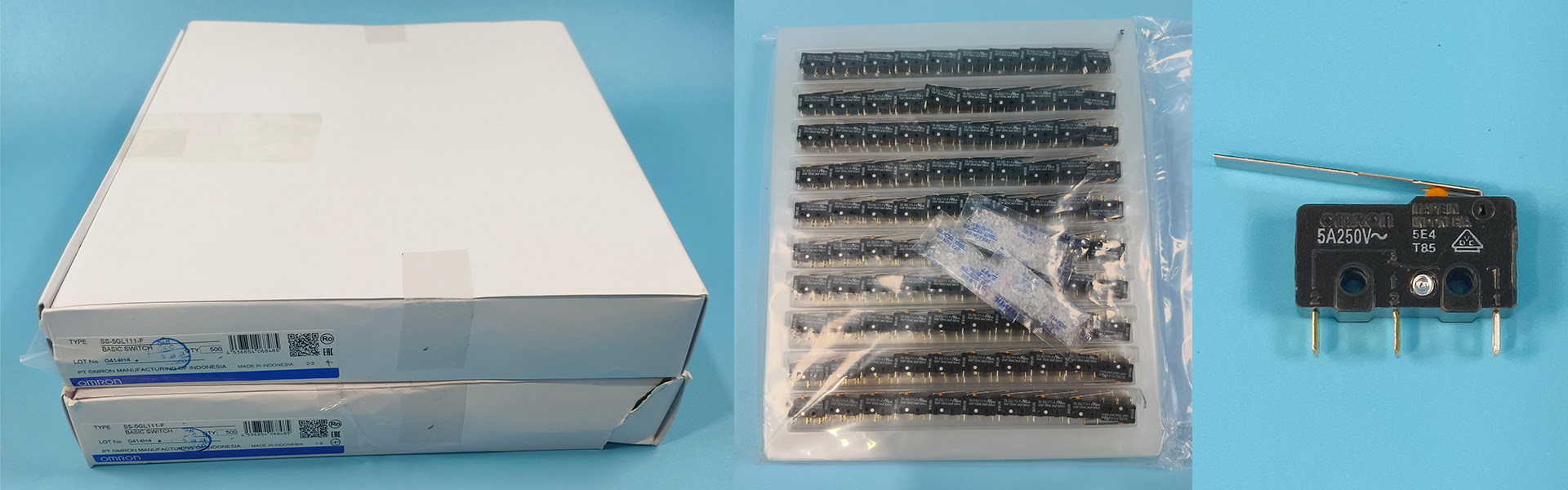

Packaging data
Packaging Type Details Individual Packing Anti-static bag, 500 pcs/bag Carton Packing 10 bags/carton (5,000 pcs)
-
