Product Overview

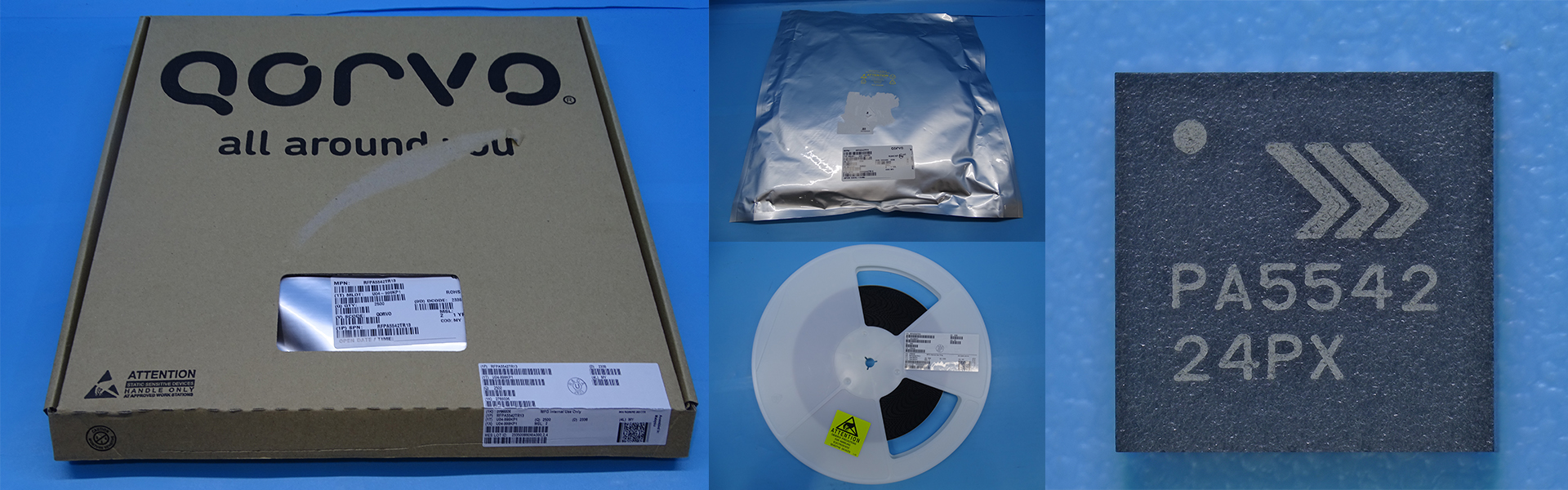

RFPA5542TR13 is a three-stage integrated power amplifier module by Qorvo, designed for 802.11a/n/ac Wi-Fi applications, covering 4.9GHz to 5.925GHz. Built on advanced InGaP heterojunction bipolar transistor (HBT) technology, it features integrated 50Ω input/output matching networks, delivering 23dBm linear power (EVM<1.8%) with high power-added efficiency (PAE). Housed in a 4.0mm×4.0mm×0.90mm QFN package with integrated power detector and regulator, it simplifies external circuitry, meeting high-power requirements for IEEE802.11a/n/ac systems.

Key Features

• High Linearity Output：Supports 802.11ac 80MHz MCS9 modulation with <1.8% EVM at 23dBm, ensuring signal integrity for high-speed data transmission.
• Wide Frequency Coverage：Operates from 4.9GHz-5.925GHz, compatible with 20/40/80/160MHz channel widths for multi-generational Wi-Fi standards (802.11a/n/ac).
• High PAE Efficiency：Typical 33dB gain with efficient power usage at 25dBm output, reducing power consumption and heat for extended device runtime.
• Integrated Design：On-chip 50Ω matching, power detector, and regulator require minimal external components (e.g., decoupling caps), saving PCB space and BOM cost.
• Robust Reliability：Operates from -40°C to +85°C with 1500V ESD HBM protection, ensuring long-term stability in harsh environments.

Technical Specifications

Typical Applications

• Wireless Access Points & Gateways：Delivers 23dBm power for enterprise Wi-Fi 5 APs, enhancing signal coverage and interference resistance in multi-user MIMO scenarios.
• Routers & Set-Top Boxes：Supports 802.11ac 160MHz channels for high-throughput home networks, ensuring low-latency 4K streaming and online gaming.
• Mobile Hotspots & Portable Devices：Low-power design suits battery-powered devices, enabling stable high-speed connections in outdoor streaming and in-vehicle Wi-Fi.
• Picocells/Femtocells：Provides efficient power amplification for small base stations, extending indoor wireless coverage and resolving signal dead zones.

Why Choose RFPA5542TR13？

• High-Performance Integration：On-board matching and detector reduce external components, simplifying design and cutting production costs.
• Multi-Standard Compatibility：Supports full 802.11a/n/ac modes, future-proofing hardware for Wi-Fi 5 enhanced applications.
• Precise Power Control：Integrated power detector (PDET) enables real-time output feedback, facilitating dynamic transmission adjustments for FCC/CE compliance.
• Compact Form Factor：4mm×4mm package fits space-constrained devices like smart home terminals and drone wireless modules.
• Eco-Friendly Design：RoHS 2.0 and halogen-free compliant, free of antimony and red phosphorus flame retardants, meeting global environmental standards.
