Product Overview

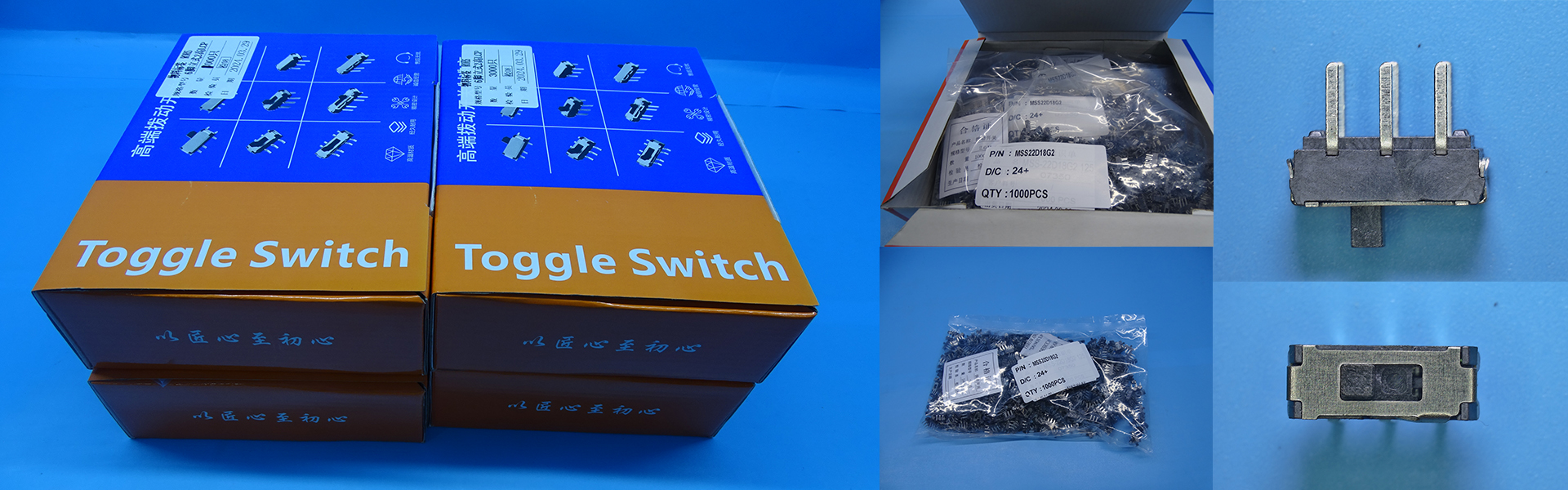

MSS22D18G2 is a high-precision slide switch developed by Shenzhen Shouhan Technology Co., Ltd., designed for circuit switching needs in electronic devices. Made with premium materials like imported reinforced nylon, stainless steel, and beryllium bronze silver-plated components, it offers stable electrical performance and long-lasting mechanical structure, suitable for home appliances, industrial control, and electronic instruments.

Key Features

• Reliable Materials: The actuator and base use imported reinforced nylon for corrosion and impact resistance; contact reeds are beryllium bronze silver-plated for excellent conductivity.
• Stable Electrical Performance: Contact resistance ≤100mΩ, insulation resistance ≥50MΩ, withstand voltage AC 250V (50-60Hz) for safe circuit isolation.
• Precise Mechanical Operation: 2.0mm gear movement, 200gf±50gf operating force for smooth operation and clear positioning.
• Wide Environmental Adaptability: Operates at -10℃~+50℃ and supports long-term use in humid environments (45%-85% humidity).
• Long-Life Design: Passed 7,000-10,000 cycle life tests with contact resistance ≤500mΩ, suitable for high-frequency switching.

Technical Specifications

Item	Parameters
Model Number	MSS22D18G2
Rating	DC 12V 100mA
Contact Resistance	≤100mΩ (tested at 1kHz small current)
Insulation Resistance	≥50MΩ (tested at 100V DC)
Withstand Voltage	AC 250V (50-60Hz, 1 minute)
Operating Force	200gf±50gf (lateral push)
Gear Movement	2.0mm±0.2mm
Temperature Range	-10℃~+50℃
Materials (Actuator/Base)	Imported reinforced nylon/Imported reinforced nylon + phosphor bronze silver-plated

Typical Applications

• Home Appliances: Suitable for TVs, air conditioners, and audio devices for power switching or function mode changes, ensuring convenient and stable operation.
• Industrial Control Equipment: Used for motor start/stop and lighting system control, resistant to industrial vibrations and temperature fluctuations.
• Electronic Instruments: Functions as a gear adjustment switch in multimeters and oscilloscopes, ensuring measurement accuracy with high-precision features.
• Consumer Electronics: Fits small devices like smart bracelets and portable speakers, with a compact design for space-saving and high-frequency operation.

Why Choose MSS22D18G2?

• Quality Assurance: Passed strict electrical and mechanical tests, compliant with international safety standards to reduce equipment failure risks.
• Superior Performance: Low resistance loss and high insulation strength meet demanding circuit control requirements.
• Flexible Installation: Adaptable to various mounting methods, compatible with different device structures.
• Cost-Effective: Long-life design reduces replacement costs, ideal for bulk purchasing and long-term use.
• Professional Service: Shouhan Technology provides technical support and customized solutions with quick response.
