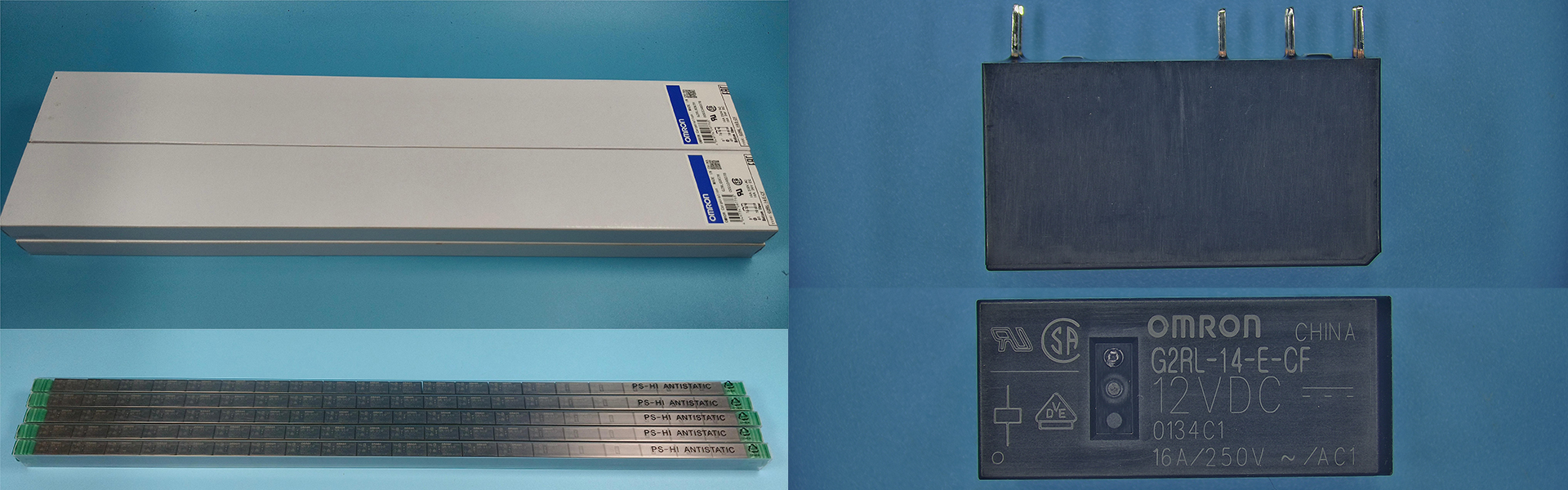

G2RL-14-E-CF-12VDC
- Manufacturer
- OMRON
- Product Number
- G2RL-14
- Description
- The G2RL-14-E-CF-12VDC is an OMRON single-pole sealed high-capacity PCB power relay with SPST-NO (Normally Open) contact configuration.
- Inventory
- 22000
- Datasheet
-
G2RL-14-E-CF-12VDC.pdf
- Delivery
-
- Payment
-
-
Product Overview
The G2RL-14-E-CF-12VDC is an OMRON single-pole sealed high-capacity PCB power relay with SPST-NO (Normally Open) contact configuration. Operating at 12VDC coil voltage, it supports 16A/250VAC resistive loads. With a 15.7mm low-profile design and hermetic sealing, it meets reliability demands in home appliances, industrial machinery, and more, certified by UL, CSA, VDE, and other global standards.
Key Features
- High-Capacity Switching：Handles 16A/250VAC rated loads, ideal for powering high-power motors and heating elements.
- Hermetic Sealing：IP67-rated sealed construction protects against dust, oil, and corrosive gases, extending service life.
- Wide Temperature Range：Operates stably from -40°C to 105°C, suitable for high-temperature industrial and outdoor environments.
- Low Power Consumption：400mW rated coil power, with PWM control support reducing standby power to 120mW.
- Global Safety Certifications：Compliant with IEC/EN 60335-1, IEC/EN 60079-15, and certified by UL, CSA, VDE for worldwide use.
Technical Specifications
Parameter Value Model G2RL-14-E-CF-12VDC Contact Form SPST-NO (1a) Coil Voltage 12VDC Coil Current 33.3mA (23°C) Coil Resistance 360Ω (±10%) Rated Load 16A/250VAC (Resistive) Max Switching Voltage 440VAC/300VDC Insulation Resistance ≥1000MΩ (500VDC) Dielectric Strength 5000VAC (Coil-Contact) Mechanical Life 20,000,000 operations Electrical Life 30,000 cycles (16A/250VAC) Protection Class Sealed (IP67) Dimensions 29mm×15.7mm×12.7mm Weight ~12g Typical Applications
- Smart Home Appliances：Controls power for AC compressors and water heaters, ensuring stable operation at high temperatures.
- Industrial Automation：Drives motors in machine tools and packaging equipment, with sealed design resisting oil and metal dust.
- Office Equipment：Integrates into printers and copiers for high-frequency power switching in power supply modules.
- Power Systems：Enables load switching in UPS systems, supporting long-life operation across wide temperatures.
- Automotive Electronics：Manages power for vehicle air conditioners and electric seats in -40°C to 85°C environments.
Why Choose G2RL-14-E-CF-12VDC？
- Reliable Contacts：Cadmium-free silver alloy (Ag-alloy) contacts offer high arc resistance, with 30,000+ electrical life cycles.
- Compact Design：15.7mm height saves 50% PCB space, suitable for dense circuit layouts.
- Extreme Temperature Tolerance：Operates without additional cooling/heating from -40°C to 105°C.
- Energy-Efficient PWM Control：Reduces holding current by 60% via PWM modulation, meeting Energy Star standards.
- Global Market Compliance：UL, CSA, VDE, and CQC certifications simplify product approvals in Europe, North America, and Asia.
