Product Overview

CL31A226KOHNNNE is a multi-layer ceramic capacitor (MLCC) by Samsung Electro-Mechanics, featuring X5R dielectric material and 1206 package. With 22μF capacitance and 16V rated voltage, it suits diverse applications from consumer electronics to automotive systems. Its ±10% tolerance and -55°C to 85°C operating range ensure reliable performance in high-frequency circuits and harsh environments.

Key Features

• Large Capacitance & High Reliability：22μF capacity meets energy storage needs, passing Samsung’s rigorous tests (e.g., 250% rated voltage withstand, ±5% capacitance change under vibration) for long-term stability.
• Precise Tolerance Control：±10% tolerance outperforms industry standards, reducing circuit deviation risks in precision filtering and coupling applications.
• Wide Temperature Adaptability：Operates from -55°C to 85°C with capacitance variation within ±15%, ideal for industrial high/low-temperature environments.
• Low-Loss High-Frequency Performance：X5R material with nickel inner electrodes and copper terminations ensures low ESR, suitable for 120Hz to 1MHz signal processing.

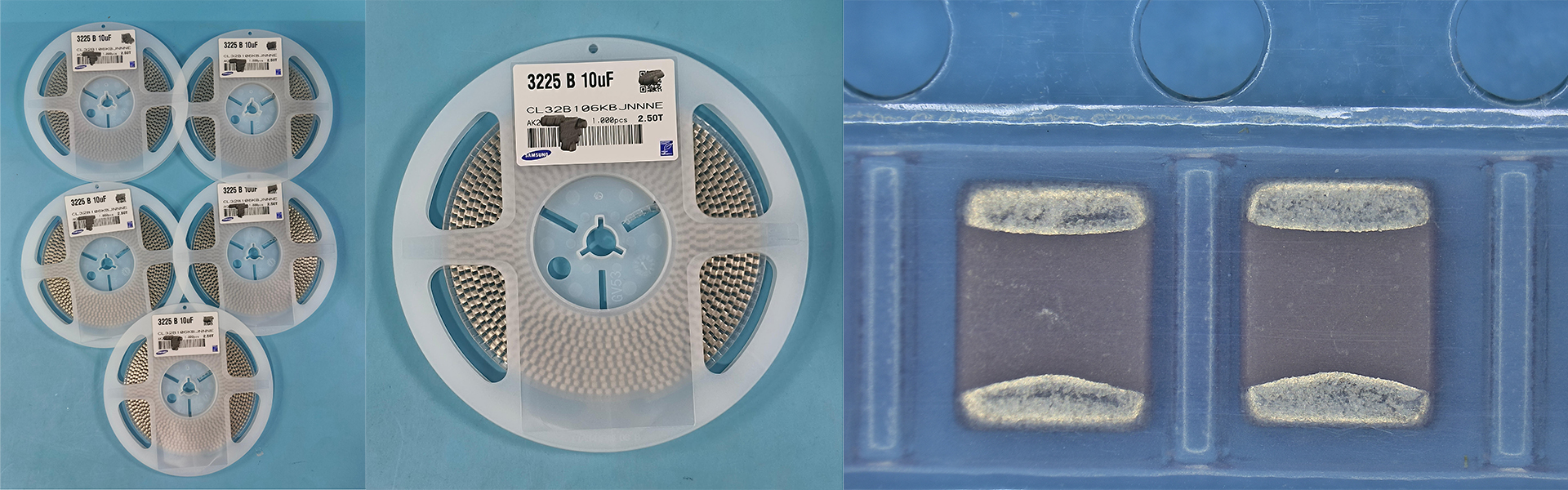

• Standard 1206 Package：3.2mm×1.6mm size fits mainstream PCBs, with embossed tape packaging for automated SMT assembly.

Technical Specifications

Typical Applications

• Consumer Electronics：Used as power filter in laptops and smart home devices to suppress high-frequency noise and ensure system stability.
• Automotive Electronics：Suitable for in-vehicle chargers (OBC) and body control modules, withstanding engine bay heat (≤85°C) and vibrations for long-term reliability.
• Industrial Automation：Applied in PLC controllers and sensor modules, maintaining performance at -55°C for continuous industrial operation.
• Communication Base Stations：Enables signal coupling and decoupling in RF circuits, with low ESR minimizing energy loss for efficient signal transmission.
• Medical Devices：Meets strict stability requirements for medical equipment like patient monitors, ensuring accurate measurement data.

Why Choose CL31A226KOHNNNE?

• Balanced Performance：X5R material ensures ≤±15% capacitance variation across temperature range, outperforming comparable products.
• Wide Compatibility：1206 package supports reflow soldering (260±5°C peak, 30s), adapting to diverse manufacturing processes.
• Quality Assurance：Passes insulation resistance ≥100MΩ and solderability ≥75% terminal coverage tests, compliant with RoHS standards.
• Optimized Design：Low inductance structure reduces high-frequency signal distortion, suitable for mixed digital-analog circuits.
• Cost-Effective：Standardized production lowers costs, while reel packaging simplifies inventory management for bulk purchases.
