CL31A106KBHNNNE
- Manufacturer
- SAMSUNG
- Product Number
- CL31A
- Description
- The CL31A106KBHNNNE is a high-reliability Multilayer Ceramic Capacitor (MLCC) from Samsung Electro-Mechanics, featuring X5R dielectric, 10μF capacitance, and a 50V rated voltage.
- Inventory
- 33000
- Datasheet
-
CL31A106KBHNNNE.pdf
- Delivery
-
- Payment
-
-
Product Overview
The CL31A106KBHNNNE is a high-reliability Multilayer Ceramic Capacitor (MLCC) from Samsung Electro-Mechanics, featuring X5R dielectric, 10μF capacitance, and a 50V rated voltage. Housed in a 1206 (3216) inch package (3.2×1.6mm), this capacitor is designed for stability and high-temperature applications. Compliant with EU RoHS and REACH directives, it supports reflow and wave soldering, making it ideal for consumer electronics, automotive, and industrial devices.
Key Features
- High Capacitance & Stability: 10μF capacitance with X5R dielectric ensures ±15% capacitance change over -55°C~+125°C, suitable for wide-temperature environments .
- Industrial-Grade Voltage: 50V rated voltage for reliable operation in medium-low voltage circuits .
- Compact Design: 1206 (3.2×1.6mm) size enables space-saving PCB layouts and automated pick-and-place assembly .
- Precision Tolerance: ±10% (K grade) tolerance meets strict requirements for consistent performance .
- Environmental Compliance: RoHS-compliant, lead-free construction with AEC-Q200 certification (selected batches) .
Technical Specifications
Parameter Specification Part Number CL31A106KBHNNNE Type MLCC Dielectric X5R (Class II), -55°C~+125°C, ±15% capacitance change Capacitance 10μF (106 code: 10×10⁶pF) Rated Voltage 50V (Voltage code: B) Tolerance ±10% (K) Dimensions 3.2×1.6×0.85mm (1206 package, size code 31) Packaging Tape and reel (JEDEC compliant), 7" or 13" reels Soldering Reflow (≤260°C) and wave soldering, lead-free compatible Certifications RoHS, REACH, AEC-Q200 (optional) Typical Applications
- Consumer Electronics: Power filtering and energy storage in smartphones, laptops, and wearables .
- Automotive Electronics: ECU, sensors, and infotainment systems, withstands -40°C~+105°C and vibrations .
- Industrial Equipment: Control panels and motor drives, offering noise suppression and stable capacitance .
- Communication Devices: High-frequency bypass applications in base stations and routers .
Why Choose CL31A106KBHNNNE?
- Wide Temperature Range: Reliable performance from -55°C to +125°C .
- Cost-Effective: Standard 1206 size reduces PCB design and procurement costs.
- Assembly Flexibility: Supports lead-free soldering for automated production lines .
- Long-Term Durability: Passes 1000-hour high-temperature aging test (125°C) with <3% capacitance drift .
- Green Compliance: Meets global environmental standards for sustainable product development .
SUNTOP COMPANY INTRODUCTION
Founded in 2000, Suntop is one of the leading global distributors of electronic
components, dedica ted to providing comprehensive procurement and supply chain services to the global electronics manufacturing industry. Our services include distribution, spot trading, PPV cost-saving projects, and inventory management. We not only offer high-quality products but also strive to assist our clients in achieving optimal solutions with minimal time and cost.
As a trusted partner for numerous OEMs, ODMs, CEMs, and EMS companies worldwide, our professional team manages millions of component records from thousands of trading partners across dozens of countries daily through our company database. We maintain close business relationships with major factories and distributors in North America, Europe, and Asia to ensure that our clients stay ahead in a highly competitive market. -
-
+ —1. What is the capacitance tolerance? >
- ±10% (K grade), ensuring tight capacitance consistency .
-
+ —2. Is it suitable for automotive applications? >
- Yes, select batches meet AEC-Q200 standards; confirm certification with the supplier .
-
+ —3. What are the recommended soldering temperatures? >
- Reflow: ≤260°C for ≤10 seconds; Wave: 260±3°C for ≤5 seconds .
-
+ —4. How should I store the capacitors? >
- Store at 5°C~40°C with 20%~70% humidity, away from corrosive gases .
-
-

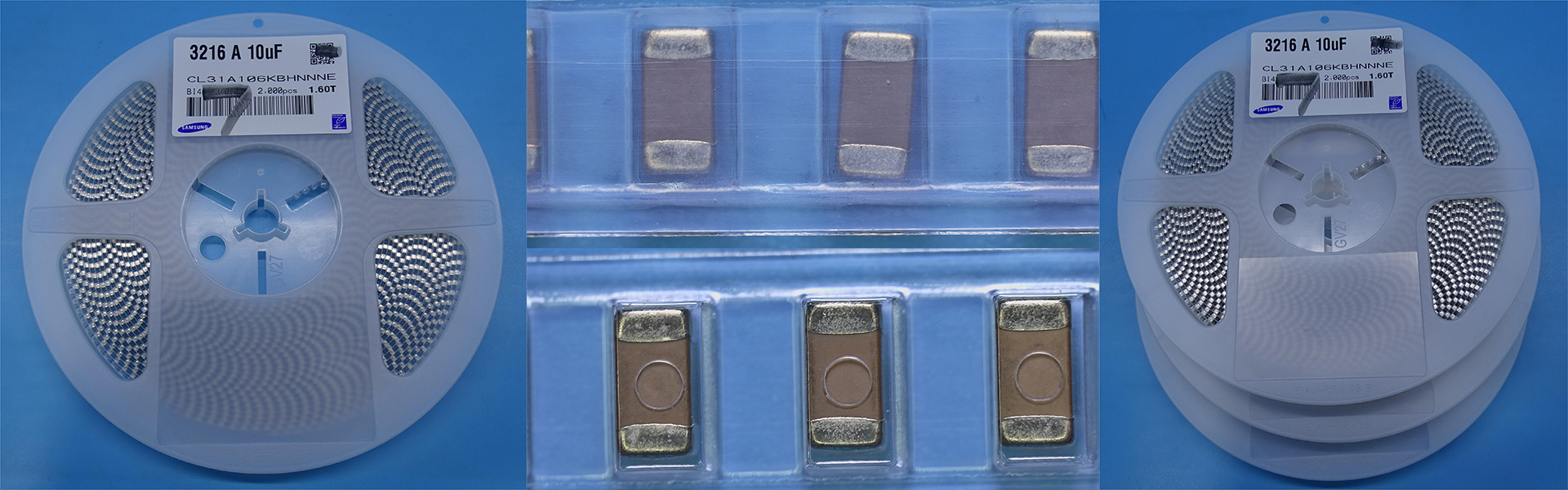

Packaging data
Parameter Specification Packaging Type Embossed plastic tape or cardboard tape Reel Size 7″ (3000 units) or 13″ (10,000 units) Shelf Life 6 months unopened, use promptly after opening Handling Avoid high temperature, humidity, and mechanical shock during transit
-
