Product Overview

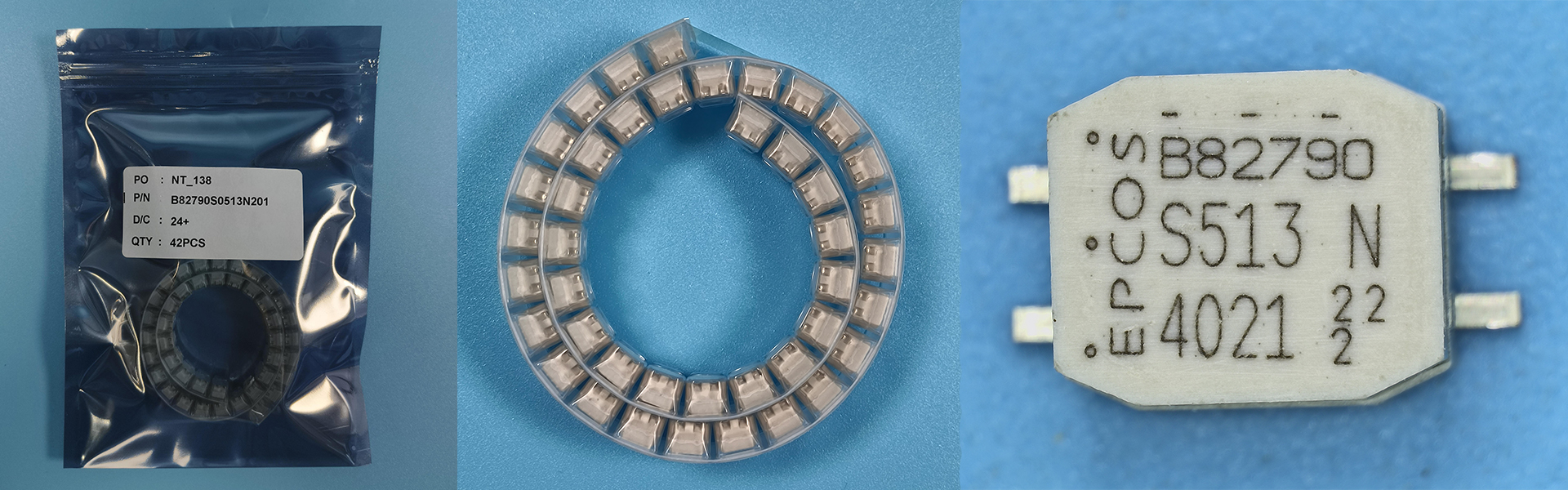

B82790S0513N201 is a common-mode choke designed for high-frequency noise suppression, utilizing sector winding technology and a ring ferrite core to effectively filter both common-mode and differential-mode interference. With a compact SMD package (9.2mm×6mm×5mm), it is ideal for EMC filtering and signal integrity optimization in automotive electronics, industrial control, and communication devices.

Key Features

• Dual-Mode Interference Suppression：2100nH stray inductance suppresses both common-mode and differential-mode noise across 10MHz to 1GHz, ensuring clean signal transmission.
• Automotive-Grade Reliability：Certified to AEC-Q200, operating stably from -40°C to +125°C, suitable for harsh environments.
• Low Power Loss：DC resistance of 140mΩ minimizes energy dissipation, enhancing system efficiency.
• Reflow Soldering Compatible：Supports lead-free soldering per JEDEC J-STD-020D, enabling automated manufacturing.
• Environmental Compliance：RoHS-compatible, free of lead, mercury, and other hazardous substances.

Technical Specifications

Typical Applications

• Automotive Electronics: Used in CAN/LIN bus systems to suppress EMI in vehicle networks, ensuring stable signal transmission between sensors and controllers.
• Industrial Equipment: Compatible with servo motor drives and PLC systems, filtering high-frequency noise to enhance the anti-interference capability of industrial automation devices.
• Communication Devices: Optimizes RF interfaces in routers and switches, reducing common-mode/differential-mode interference to improve data throughput.
• Consumer Electronics: Integrated into power modules of laptops and smart home devices to minimize power noise affecting sensitive circuits.
• Medical Instruments: Provides a low-noise power environment for ECG machines and monitors, ensuring accurate measurements and reliable operation.

Why Choose B82790S0513N201？

• Full-Band Noise Suppression：Unique sector winding technology addresses both noise modes, outperforming traditional single-mode filters.
• Rugged Performance：Passes 1,000-hour high-temperature/humidity tests, ensuring long-term stability in harsh automotive environments.
• Space-Efficient Design：Compact 9.2mm×6mm package enables high-density PCB layouts for miniaturized devices.
• Rapid Delivery：Factory-direct supply with 72-hour shipping and professional technical support to shorten R&D cycles.
• Process Compatibility：Supports leaded/lead-free soldering, adapting to mainstream PCB manufacturing processes and reducing production complexity.
