Product Overview

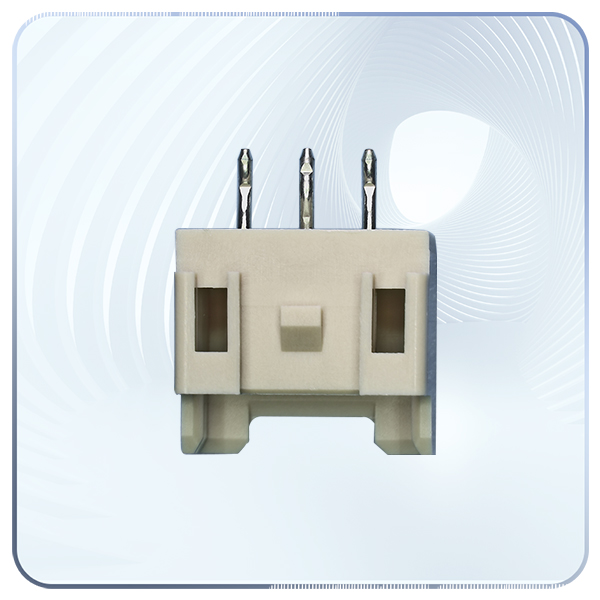

The B03B-XASK-1(LF)(SN) is a 2.5mm pitch disconnectable crimp-style connector belonging to the XA CONNECTOR series. Equipped with a secure locking device, solder crack preventive material, and low insertion force design, it is compatible with automatic board mounting machines and supports through-hole installation. Meeting industrial-grade reliability and ease of use, it complies with RoHS standards, suitable for various electronic device circuit connection scenarios.

• Secure Locking Device: Ensures stable connection and prevents accidental disconnection, enhancing reliability.
• Solder Crack Preventive Material: Reduces soldering cracks, improving joint durability.
• Low Insertion Force Design: Simplifies manual or automated assembly, reducing operation intensity.
• Insertion Guide Mechanism: Facilitates quick alignment to avoid misplacement damage.
• Automation Compatibility: Supports automatic board mounting machines, boosting mass production efficiency.
• Polarizing Boss: Prevents reverse insertion, ensuring correct connection polarity.

Technical Specifications

Typical Applications

• Electronic Device Assembly: Suitable for internal circuit connections in miniaturized electronics (e.g., smart home appliances, portable devices), improving production efficiency with low insertion force and automation compatibility.
• Industrial Control Equipment: In industrial environments, the wide temperature range and high insulation resistance ensure stable operation, while the secure locking device prevents vibration-induced disconnection.
• Consumer Electronics: RoHS compliance makes it ideal for eco-friendly production of mobile phones, laptops, etc., with solder crack prevention ensuring long-term reliability.
• Communication Equipment: High voltage resistance and low contact resistance meet signal transmission stability requirements for communication modules, supporting high-speed data interaction.
• LED Lighting: Compatible with various wire specifications, facilitating circuit connections in LED fixtures; the polarizing boss avoids polarity errors, enhancing installation convenience.
• Why Choose B03B-XASK-1(LF)(SN)?

Why Choose B03B-XASK-1(LF)(SN)?

• High-Reliability Connection: Secure locking and polarizing boss prevent misinsertion and disconnection, ensuring stable circuits.
• Process Friendliness: Low insertion force and insertion guide simplify assembly; solder crack prevention improves soldering quality, reducing defects.
• Automation Compatibility: Supports automatic board mounting, fitting mass production needs and reducing labor costs.
• Wide Environmental Adaptability: -25°C to +85°C temperature range and high voltage resistance suit harsh industrial and consumer electronics scenarios.
• Environmental Compliance: RoHS certification meets global green manufacturing requirements.
