Product Overview

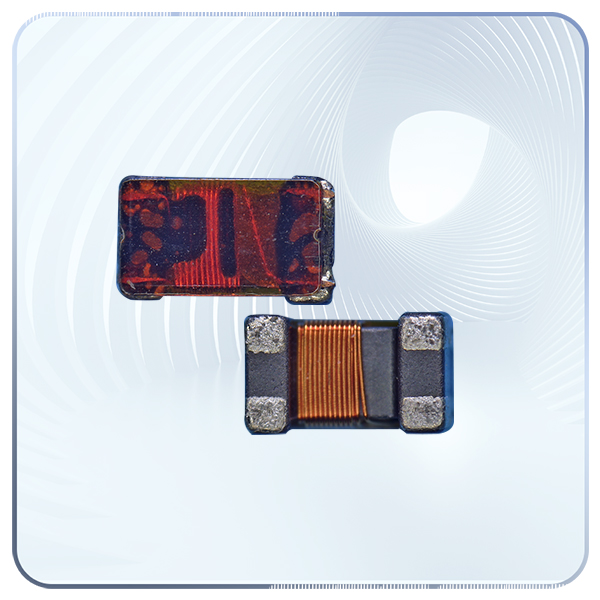

The ACM2012E-900-2P-T00 is a common mode filter for high-speed differential signal lines by TDK, designed to suppress high-frequency common-mode noise with superior miniaturization and low-profile features. Compliant with RoHS and lead-free soldering standards, it operates stably from -40°C to +85°C, ideal for high-speed data transmission systems in computers, consumer electronics, and industrial devices. It effectively filters common-mode interference while maintaining signal integrity, making it a perfect choice for enhancing circuit EMC performance.

Key Features

• High-Efficiency Common-Mode Noise Suppression：Achieves 90Ω (+25%) common-mode impedance at 100MHz, significantly attenuating high-frequency noise to ensure signal purity.
• Low Differential-Mode Impedance：Minimal loss for differential signals, ensuring high-speed data transmission (e.g., USB, LVDS) without distortion or delay.
• Ultra-Compact Design：Tiny 2.0×1.2×1.0mm (L×W×H) size fits dense PCB layouts, saving valuable board space for compact devices.
• Wide Temperature Adaptability：Operates and stores from -40°C to +85°C, ensuring reliability in harsh environments with extreme temperatures.
• Green Compliance：RoHS and halogen-free compliant (CI/Br < 900ppm), supporting sustainable electronic product development.

Technical Specifications

1. High-Efficiency Common-Mode Noise Suppression：Achieves 90Ω (+25%) common-mode impedance at 100MHz, significantly attenuating high-frequency noise to ensure signal purity.
2. Low Differential-Mode Impedance：Minimal loss for differential signals, ensuring high-speed data transmission (e.g., USB, LVDS) without distortion or delay.
3. Ultra-Compact Design：Tiny 2.0×1.2×1.0mm (L×W×H) size fits dense PCB layouts, saving valuable board space for compact devices.
4. Wide Temperature Adaptability：Operates and stores from -40°C to +85°C, ensuring reliability in harsh environments with extreme temperatures.
5. Green Compliance：RoHS and halogen-free compliant (CI/Br < 900ppm), supporting sustainable electronic product development.

Typical Applications

• Computer & Peripherals：Used in USB 2.0/3.0 ports and IEEE 1394 data cables to filter common-mode noise in high-speed data transfer, preventing signal distortion and device malfunctions.
• High-Definition Display Systems：Suppresses noise in LVDS/Panel Link differential signal lines for LCD screens, ensuring stable 1080P/4K video transmission without interference artifacts.
• Network Communication Devices：Fits ETHERNET interfaces to attenuate EMI in network transmission, improving data throughput and connection stability.
• Industrial Control Equipment：Protects signal lines in servo motors and sensors from industrial EMI, ensuring accurate control command transmission.
• Consumer Electronics：Balances signal integrity and space constraints in portable devices like tablets and digital cameras, ideal for miniaturized designs.

Why Choose ACM2012E-900-2P-T00？

• Specialized for High-Speed Signals：Optimized for USB, LVDS, and other differential signals with low differential impedance, suitable for >1Gbps data rates.
• Superior Noise Filtration：90Ω common-mode impedance at 100MHz effectively blocks high-frequency interference from smartphones, Wi-Fi, etc., enhancing system EMC.
• Rugged Environmental Performance：Passes -40°C to +85°C thermal cycling tests, reliable for high-temperature and vibrating environments like automotive and industrial applications.
• Eco-Friendly Standards：Lead-free and halogen-free materials comply with global environmental regulations, supporting green manufacturing.

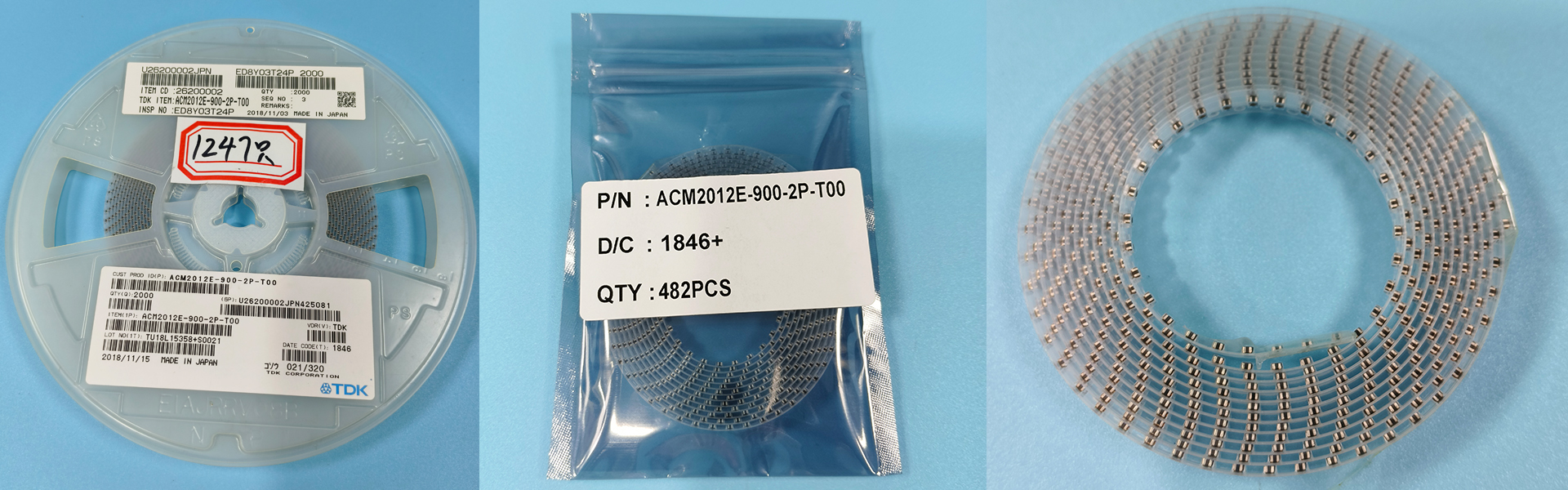

• Production-Friendly Packaging：Standard 2000-pieces/reel (180mm reel) tape-and-reel packaging is compatible with fully automated pick-and-place machines, reducing mass-production costs.
