502598-1593
- Manufacturer
- MOLEX
- Product Number
- 50259
- Description
- The 502598-1593 is a 0.3mm Pitch FPC Back Flip Connector by Molex, designed for compact flexible printed circuit (FPC) interconnections.
- Inventory
- 32000
- Datasheet
-
502598-1593.pdf
- Delivery
-
- Payment
-
-
Product Overview

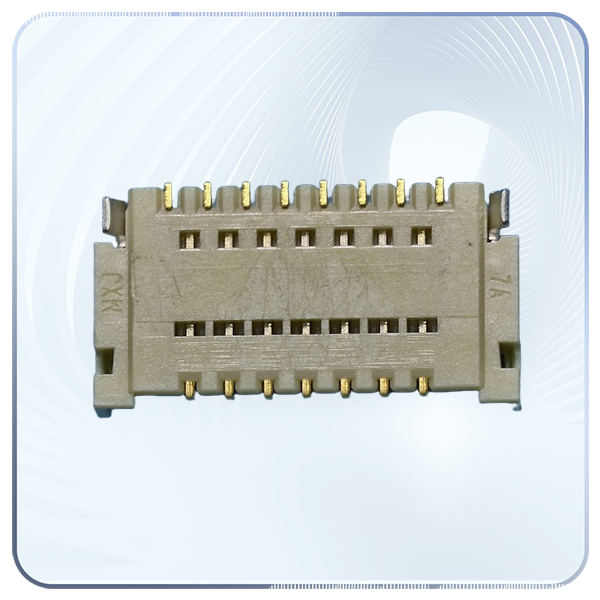

The 502598-1593 is a 0.3mm Pitch FPC Back Flip Connector by Molex, designed for compact flexible printed circuit (FPC) interconnections. Featuring a rear-mounted flip actuator, it supports 15 circuits in a high-density layout, with nickel-plated contacts (compatible with gold plating) and a UL94V-HB glass-filled polyamide housing. Ideal for flexible wiring in mobile electronics, it combines ultra-thin design with robust reliability.
Key Features
- 0.3mm Ultra-Fine Pitch：Enables high-density routing for wearables, foldable phones, and other miniaturized devices.
- Back Flip Actuator Locking：Push-pull actuator ensures secure FPC retention, preventing accidental disconnection.
- High-Reliability Plating：Nickel underplating (≥1μm) on contacts provides corrosion resistance, with optional gold plating available.
- Flame-Retardant & Eco-Friendly：UL94V-HB rated housing, compliant with ELV and RoHS standards, supporting lead-free manufacturing.
- Automation-Ready Packaging：Embossed tape on reel (3000 pcs/reel) for high-speed SMT assembly, optimizing production efficiency.
Technical Specifications
Item Parameters Pitch 0.3mm Circuits 15 Connection Type FPC (Flexible Printed Circuit), Back Flip Physical - Housing: Glass-filled polyamide (black, UL94V-HB)
- Terminals: Copper alloy
- Contact Plating: Nickel (≥1μm)Mechanical - Actuator Force: ≤5N
- FPC Retention Force: ≥2N
- Mating Cycles: ≥100Temperature Range -20°C to +85°C Packaging Embossed Tape on Reel (ETR), 3000 pcs/reel Compliance RoHS, ELV, IEC 60286-3 (cover tape peel force) Typical Applications
- Smartphones & Tablets：Connects mainboards to displays/camera modules, supporting dynamic bending in foldable devices.
- Wearable Technology：Ideal for FPC routing in smartwatches and fitness trackers, adapting to tight spatial constraints.
- Consumer & Medical Electronics：Suitable for earbuds, blood glucose monitors, and other micro-devices requiring reliable flexible connections.
Why Choose 502598-1593？
- Extreme Space Saving：0.3mm pitch reduces device volume by 30%+, enabling ultra-slim designs.
- Vibration-Resistant Design：Actuator locking mechanism enhances stability for frequent 开合 in mobile scenarios.
- Long-Term Performance：Nickel-plated contacts resist corrosion, ensuring durability in humid/high-temperature environments.
- Sustainability Compliance：Halogen-free and lead-free materials meet global ESG requirements for green manufacturing.
- Cost-Effective Mass Production：Reel-to-reel packaging supports fully automated assembly, reducing labor costs for million-scale production.
SUNTOP COMPANY INTRODUCTION
Founded in 2000, Suntop is one of the leading global distributors of electronic
components, dedica ted to providing comprehensive procurement and supply chain services to the global electronics manufacturing industry. Our services include distribution, spot trading, PPV cost-saving projects, and inventory management. We not only offer high-quality products but also strive to assist our clients in achieving optimal solutions with minimal time and cost.
As a trusted partner for numerous OEMs, ODMs, CEMs, and EMS companies worldwide, our professional team manages millions of component records from thousands of trading partners across dozens of countries daily through our company database. We maintain close business relationships with major factories and distributors in North America, Europe, and Asia to ensure that our clients stay ahead in a highly competitive market. -
-
+ —1. What FPC thickness does this connector support? >
- Recommended FPC thickness is 0.2mm±0.03mm, compatible with standard flexible circuit boards.
-
+ —2. What is the contact plating material? >
- Base plating is nickel (≥1μm), with optional gold plating available upon request.
-
+ —3. How many connectors are in each reel? >
- Standard packaging is 3000 pieces per reel, designed for continuous feed in automated lines.
-
+ —4. Can it operate in automotive temperature conditions? >
- Yes, with a -20°C to +85°C range, suitable for in-vehicle electronic applications.
-
-
Packaging data
Item Parameters Packaging Type Embossed Tape on Reel Quantity/Reel 3000 pcs Reel Material Polystyrene (PS) Tape Material Carrier: PS; Top: PET
-
