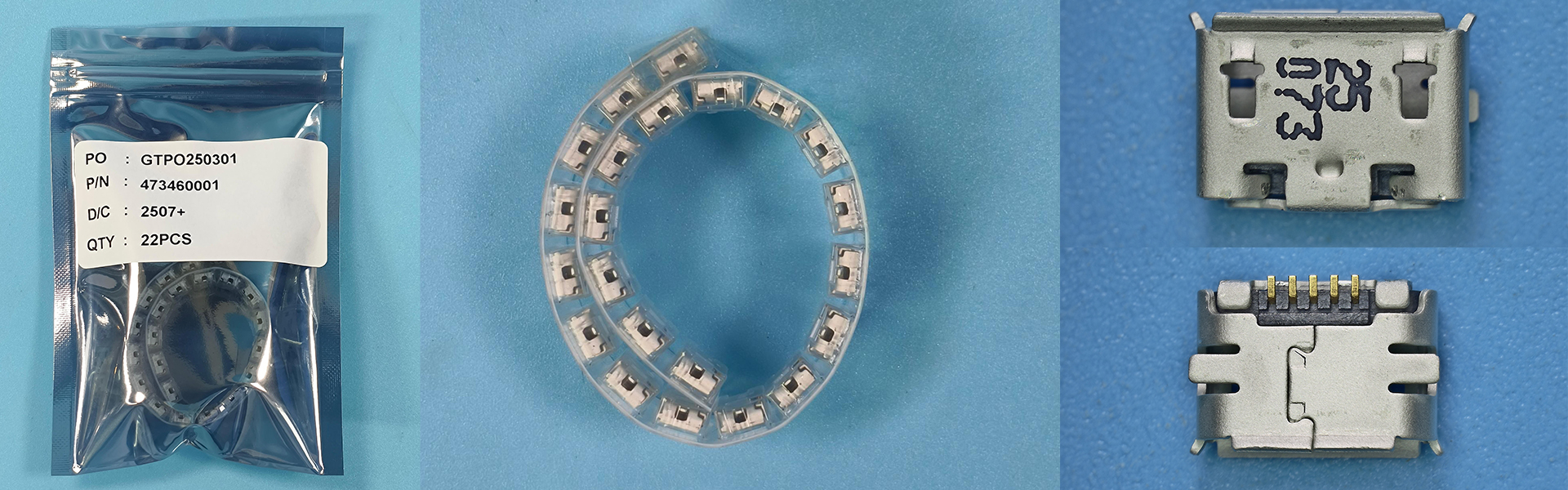

473460001
- Manufacturer
- MOLEX
- Product Number
- 47346
- Description
- The 47346-0001 is a 0.65mm Pitch Micro-USB Standard ‘B’ Receptacle by Molex, a USB-IF certified next-gen micro interconnect solution.
- Inventory
- 22000
- Datasheet
-
473460001.pdf
- Delivery
-
- Payment
-
-
Product Overview
The 47346-0001 is a 0.65mm Pitch Micro-USB Standard ‘B’ Receptacle by Molex, a USB-IF certified next-gen micro interconnect solution. As an upgrade to Mini-USB, it features a blind mate lead-in design and laser-welded shield structure, supporting 10,000 insertion cycles. Engineered for smartphones and portable electronics, it balances compact size with high reliability.
Key Features
- Blind Mate Lead-in Feature：Curved guiding structure enables vision-free alignment for effortless plugging.
- Laser-Welded Shield Design：Stainless steel shell reinforced by laser welding resists damage from lateral/vertical stress.
- 10,000-Cycle Durability：Rated for up to 10,000 mating cycles, ideal for high-frequency usage scenarios.
- Anti-Misplug ‘B’ Bevel Profile：Unique contour prevents mismating with ‘A’ type plugs, ensuring connection accuracy.
- Wide Side Solder Tabs：Extended lateral pads enhance PCB retention, reducing the risk of detachment.
Technical Specifications
Item Parameters Pitch 0.65mm (0.025”) Type Micro-USB Standard ‘B’ Receptacle Electrical - Voltage: 100V AC
- Current: 1A
- Contact Resistance: ≤40mΩ
- Insulation Resistance: ≥100MΩMechanical - Mating Force: ≤35N
- Unmating Force: 10N~20N
- Terminal Retention: ≥4.0NPhysical - Housing: Liquid Crystal Polymer (UL94V-0)
- Contact: Copper Alloy
- Shell: 0.3mm Stainless SteelPlating - Contact Area: 0.13μm Gold over 0.76μm Pd/Ni
- Solder Tail: Gold flashTemperature Range -20°C to +85°C Packaging Embossed Tape and Reel (ET&R) Typical Applications
- Smartphones & Mobile Devices：Fits charging and data interfaces of major phone models, supports OTG direct communication without a host device.
- Portable Electronics：Suitable for MP3 players, digital camcorders, etc., with a compact form factor for slim designs.
- Consumer IoT Devices：Ideal for wearable tech and small sensors, providing stable power and signal connections.
Why Choose 47346-0001？
- Industry Standard Compliance：USB-IF certification ensures compatibility with global USB devices and stable data transmission.
- EMI Protection：Stainless steel shield and rear EMI guard reduce electromagnetic interference for clean signal integrity.
- Wide Temperature Performance：Operates reliably from -20°C to +85°C, suitable for outdoor and automotive environments.
- Automation-Friendly Design：3mm pick-and-place area supports high-speed SMT assembly, enhancing production efficiency.
- Eco-Friendly Materials：UL94V-0 flame-retardant housing complies with RoHS standards, supporting green manufacturing.
SUNTOP COMPANY INTRODUCTION
Founded in 2000, Suntop is one of the leading global distributors of electronic
components, dedica ted to providing comprehensive procurement and supply chain services to the global electronics manufacturing industry. Our services include distribution, spot trading, PPV cost-saving projects, and inventory management. We not only offer high-quality products but also strive to assist our clients in achieving optimal solutions with minimal time and cost.
As a trusted partner for numerous OEMs, ODMs, CEMs, and EMS companies worldwide, our professional team manages millions of component records from thousands of trading partners across dozens of countries daily through our company database. We maintain close business relationships with major factories and distributors in North America, Europe, and Asia to ensure that our clients stay ahead in a highly competitive market. -
-
+ —1. Does this receptacle support fast charging? >
- Rated for 1A current, suitable for standard charging. Fast charging requires a compatible power management IC.
-
+ —2. What is the mating durability? >
- Designed for 10,000 insertion cycles, significantly exceeding the industry average for ordinary connectors.
-
+ —3. What is the plating thickness on contact points? >
- Contact area features 0.13μm gold over 0.76μm palladium/nickel for oxidation resistance and reliable conductivity.
-
+ —4. How does it differ from Mini-USB receptacles? >
- Approximately 40% smaller in size, features ‘B’ bevel anti-misplug design, and supports OTG direct connectivity.
-
-
Packaging data
Item Parameters Packaging Type Embossed Tape and Reel Unit Weight Approx. 0.5g (actual specs may vary)
-
