Product Overview

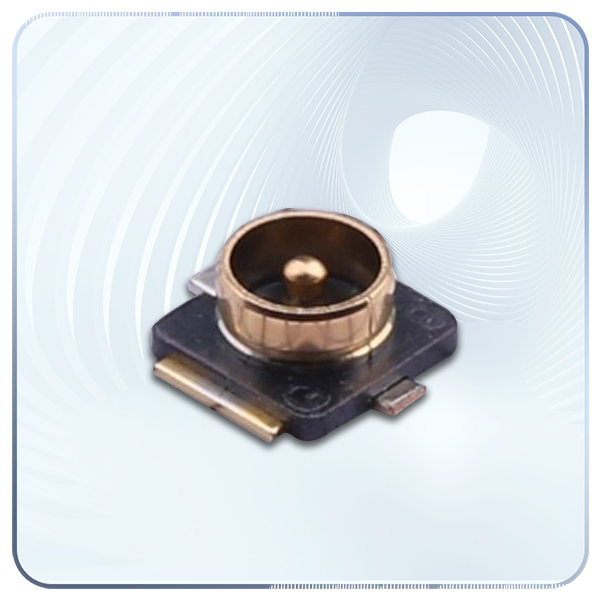

The 2337019-1 is an RF receptacle connector designed for high-frequency signal transmission, supporting a 0~6GHz wide frequency range and 50Ω characteristic impedance system. Ideal for wireless communication, radar, and testing equipment, it features 0.05μm gold-plated contact surfaces for enhanced conductivity and corrosion resistance, along with 500MΩ minimum insulation resistance and 1.3MAX VSWR, ensuring stable signal transmission. RoHS compliant and packaged in tape and reel (10,000 pieces/reel), it is a reliable choice for high-frequency electronic applications.

Key Features

• Broadband Capability: Supports 0~6GHz, covering mainstream high-frequency applications like Wi-Fi, 5G, and microwave systems.
• Low Signal Loss: VSWR ≤1.3 (0~6GHz) minimizes signal reflection and ensures high integrity transmission.
• High Reliability: Initial contact resistance ≤20mΩ (inner/outer contacts), insulation resistance ≥500MΩ for long-term stable connections.
• Gold-Plated Durability: Contact surfaces with ≥0.05μm gold plating resist oxidation and corrosion, extending service life.
• Automation-Ready: Tape and reel packaging (10,000 pieces/reel) supports high-speed pick-and-place machines for efficient manufacturing.

Technical Specifications

Typical Applications

• Wireless Communication Equipment: Used in base stations, routers, and wireless modules to enable low-loss signal transmission below 6GHz, ensuring stable 5G and Wi-Fi connectivity.
• Radar & Sensing Systems: Delivers precise signal transmission/reception in aerospace and industrial radar due to low VSWR and broadband performance.
• Test & Measurement Instruments: Provides reliable connections for spectrum analyzers and signal generators, meeting lab-grade precision requirements.
• IoT Terminals: Adapts to miniaturized device layouts, supporting high-frequency signal interaction in IoT sensors and modules for efficient data transmission.
• Industrial Control Equipment: Maintains low signal reflection in complex electromagnetic environments, suitable for high-frequency communication modules in industrial automation.

Why Choose 2337019-1？

• Wide Frequency Coverage: 0~6GHz range is compatible with multiple high-frequency protocols, future-proofing technical upgrades.
• Superior Signal Performance: Low VSWR (≤1.3) and high insulation resistance (≥500MΩ) minimize signal loss and interference.
• Durable Design: Gold-plated contacts resist corrosion, ensuring long-term use in harsh environments like moisture and dust.
• Manufacturing Efficiency: Standardized tape and reel packaging enables automated assembly, reducing labor costs and speeding up production.
• Environmental Compliance: RoHS compliant, lead-free design meets global environmental requirements for safe use.
