Product Overview

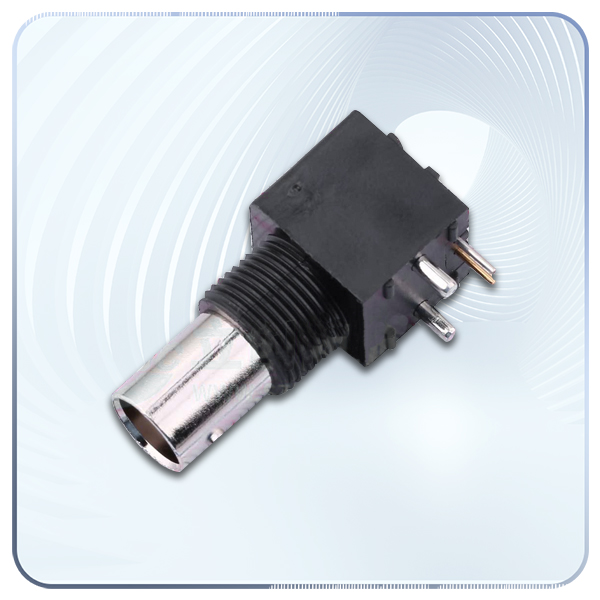

The 1-1634622-0 is a precision RF connector designed for high-frequency signal transmission, featuring a 1/2-28UNEF-2A standard threaded interface and 75Ω characteristic impedance, ideal for applications requiring stable connectivity and signal integrity. With high-precision mechanical structure and reliable electrical performance, it supports multiple plating processes (gold, nickel, tin) to adapt to different environmental needs, making it an optimal solution for communication base stations, radar systems, and testing equipment.

Key Features

• Standard Threaded Interface: Uses 1/2-28UNEF-2A thread specification for compatibility with mainstream RF devices, enabling quick and precise mating.
• Stable Impedance Matching: 75Ω characteristic impedance minimizes signal reflection, ensuring low-loss transmission for high-frequency signals.
• Diverse Plating Options: Supports gold, nickel, and tin plating to meet corrosion resistance, conductivity, and cost requirements in various scenarios.
• High-Precision Mechanics: Critical dimensions controlled within ±0.05mm tolerance for tight fit with equipment.
• Flexible Packaging: Offers single-unit and tray packaging to suit automated production lines and bulk purchasing needs.

Technical Specifications

Typical Applications

• Communication Base Stations: Used in cellular network base stations for RF link connections, with 75Ω impedance ensuring efficient signal transmission and reduced energy loss.
• Radar & Sensing Equipment: High-precision threads and stable impedance design enable accurate signal transmission/reception in radar systems, even in vibrational environments.
• Test & Measurement Instruments: Compatible with spectrum analyzers and signal generators, providing reliable 75Ω impedance connections for lab-grade precision.
• Broadcast & TV Systems: Supports broadband signal transmission in cable TV and satellite equipment, ensuring stable audio/video signal delivery.
• Industrial Automation: Environment-resistant plating (e.g., nickel) suits industrial control devices, maintaining long-term reliability in dusty or humid conditions.

Why Choose 1-1634622-0？

• Strong Standard Compatibility: 1/2-28UNEF-2A thread matches international standards, seamlessly integrating with mainstream devices to reduce adaptation costs.
• Superior Signal Performance: 75Ω impedance design controls signal reflection, ideal for high-frequency scenarios sensitive to transmission loss.
• Wide Environmental Adaptability: Diverse plating options (gold for corrosion resistance, tin for cost-effectiveness) meet reliability needs in various environments.
• High-Precision Manufacturing: Tight dimensional tolerances ensure consistent mechanical mating and reduce risks of poor contact.
• Flexible Packaging Solutions: Single-unit and tray packaging cater to both small-scale testing and large-scale production, enhancing supply chain efficiency.
