Product Overview

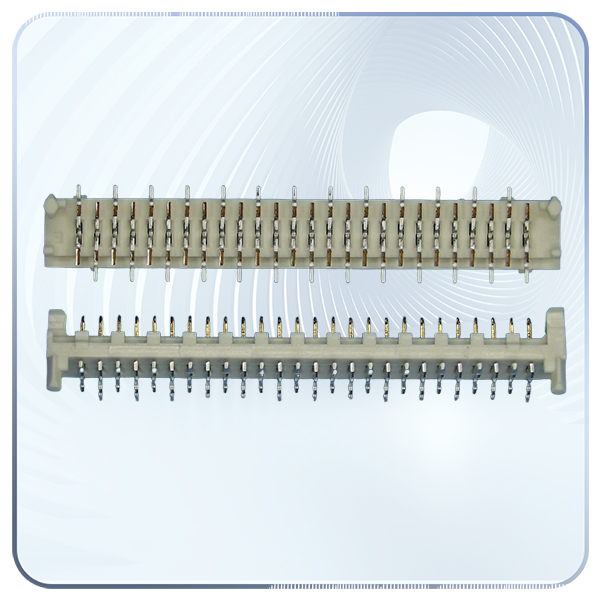

0908143826 is a 1.27mm (.050") pitch vertical SMT header from Molex's Picoflex® PF-50 series. Featuring gold-plated brass terminals and a UL94V-0 fire-rated nylon housing, it offers low-profile design, high-reliability connections, and Glow Wire compliance, ideal for consumer electronics, industrial control, and medical devices. It provides compact and efficient wire-to-board solutions for high-density PCBs.

Key Features

• Precision Compact Design
  • 1.27mm (.050") narrow pitch and low-profile structure save PCB space, suitable for miniaturized devices.
  • Vertical orientation facilitates vertical wiring, optimizing space utilization.
• Reliable Connections
  • Gold-plated contacts (min. 0.76μm plating) resist oxidation and ensure low-impedance signal transmission, with 100 mating cycles durability.
  • Polarized design prevents incorrect insertion, enhancing assembly accuracy.
• Safety-Compliant Materials
  • Housing made of nylon 4/6 30% glass-filled (UL94V-0 fire rating), Glow Wire compliant for flame-retardant applications.
  • Compliant with RoHS/China RoHS/ELV standards, halogen-free (status not explicitly stated but RoHS compliant).
• Thermal Stability
  • Operates in -40°C to +105°C temperature range, suitable for harsh environments; SMT process ensures robust soldering and automated production.
• Versatile Compatibility
  • Recommended 1.60mm (0.063") PCB thickness with PCB locators and retention features for secure mounting; mates with Molex 90327 series connectors.

Technical Specifications

Typical Applications

• Consumer Electronics: Ideal for internal wiring in smartphones and wearables, with narrow pitch and low profile for slim designs.
• Industrial Equipment: Provides reliable connections in industrial computers and automation systems, with wide temperature and fire-resistant features.
• Medical Devices: Meets medical safety standards, gold-plated contacts ensure stable signals for precision medical instruments.
• Automotive Electronics: Glow Wire compliant and vibration-resistant, suitable for in-vehicle wire-to-board connections.

Why Choose 0908143826？

• Trusted Brand: Molex’s global leadership ensures rigorous testing and quality assurance.
• Space-Saving Design: Narrow pitch and vertical layout maximize PCB real estate.
• Cost-Effective: 100-cycle durability balances long-term reliability with affordability.
• Multi-Compliance: Meets RoHS, UL94V-0, and Glow Wire standards for global market access.
• Flexible Compatibility: Pairs with 90327 series, available in 4-34 circuits for versatile solutions.
