Product Overview

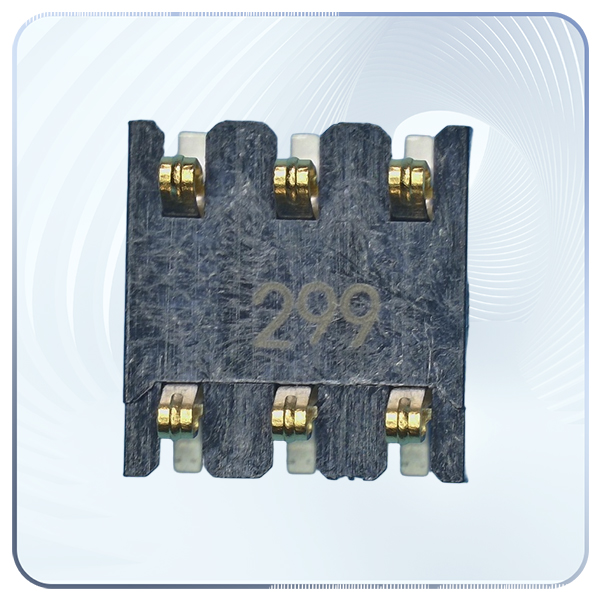

The 0788641001 is a 1.60mm Pitch Compression Connector by Molex, featuring a 1.20mm low profile and dual-row 6-circuit design, belonging to the PCB Headers and Receptacles category. With surface mount termination and gold-plated contacts (min 0.102µm), it uses a liquid crystal polymer (black) housing, ideal for board-to-board signal transmission. Compliant with EU RoHS and Low-Halogen standards, it balances compactness and reliability.

Key Features

• Ultra-Thin Compression Design：1.20mm working height and 1.60mm pitch enable high-density PCB layouts, saving over 30% space.
• 30-Cycle Durability：Rated for up to 30 mating cycles, suitable for moderate maintenance needs.
• Gold-Plated Contact Reliability：Gold plating (≥0.102µm) enhances conductivity and corrosion resistance, minimizing signal loss.
• Lock-Free Quick Connection：No mating lock design (Lock to Mating Part: None) allows fast plugging/unplugging for efficient assembly.
• Eco-Friendly Compliance：Certified for EU RoHS, REACH SVHC, and Low-Halogen (IEC 61249-2-21)，supporting sustainable manufacturing.

Technical Specifications

Item	Parameters
Pitch	1.60mm
Working Height	1.20mm
Rows/Circuits	Dual row, 6 Circuits
Electrical	- Max Current: 1.0A per contact - Max Voltage: 10V
Physical	- Housing: Liquid crystal polymer (UL94V-0, black) - Terminals: Copper alloy - Plating: Gold (≥0.102µm) on contacts, matte tin on terminations
Temperature Range	-40°C to +85°C
Soldering Process	Reflow compatible (Max-Temp: 245°C, Max-Cycle: 2)

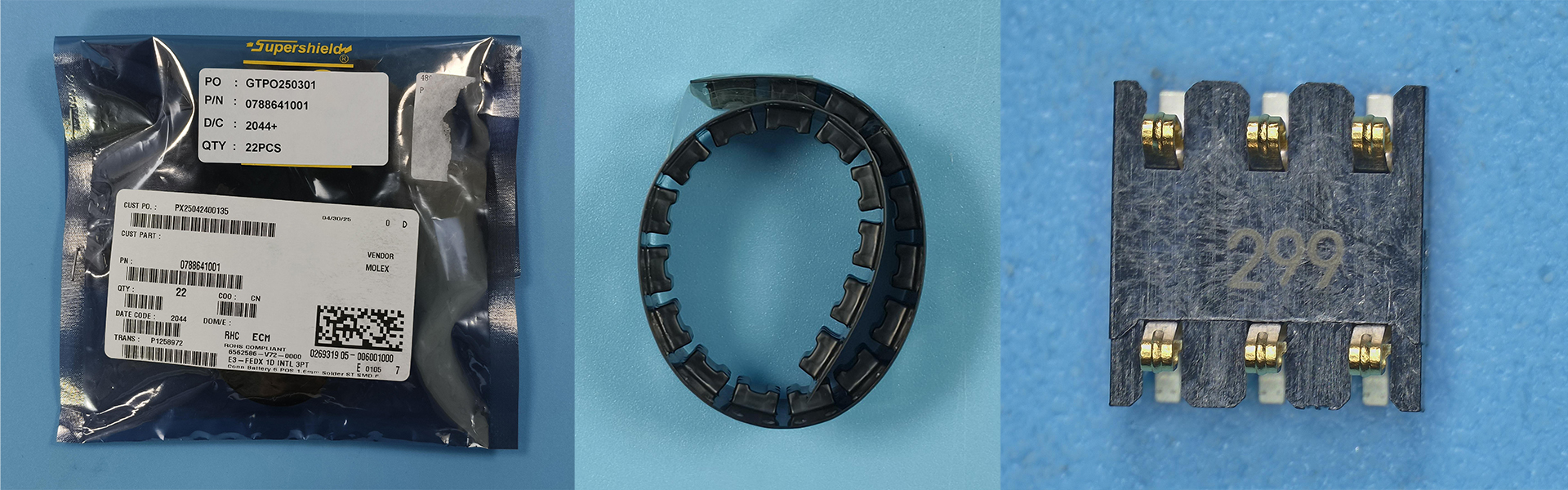

Packaging	Embossed Tape on Reel (ETR)

Typical Applications

• Consumer Electronics：Ideal for board-to-board connections in smartphones/tablets, such as mainboard to camera module high-speed data transfer.
• Industrial Control：Suitable for compact industrial devices, operating reliably in -40°C to +85°C environments.
• Medical Devices：Meets high-density routing needs in miniaturized medical equipment, with gold contacts ensuring signal integrity.

Why Choose 0788641001？

• Space-Efficient Design：1.20mm profile leads the industry, enabling ultra-slim device architectures.
• High-Frequency Stability：Gold contacts reduce contact resistance (<5mΩ), supporting high-speed signals like USB 2.0.
• Automation-Compatible：Reflow soldering support (Max-Cycle: 2) optimizes mass production efficiency.
• Wide Temperature Performance：Operates reliably in extreme conditions, suitable for automotive and industrial applications.
• Global Compliance：Certified under EU RoHS, RoHS, and Low-Halogen, streamlining market entry worldwide.
